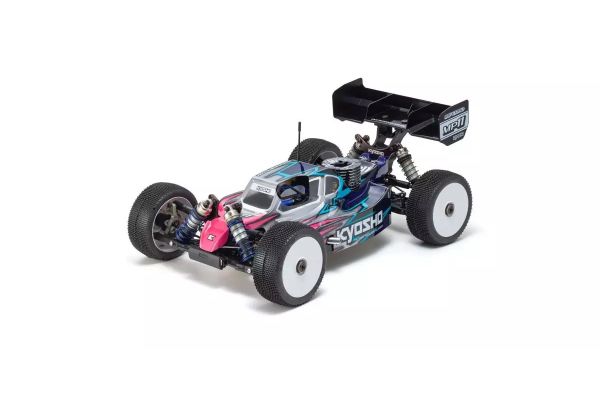

1/8 Scale Radio Controlled .21 Engine Powered 4WD Racing Buggy INFERNO MP11 33028
Description
The off-road legend reborn
First full model change in six years!
The 1/8-scale GP buggy Inferno series stands tall as Kyosho’s flagship R/C car line, not only winning multiple world championship titles but also delivering the pure thrill of driving at the highest level. Now, the legacy continues with the debut of the next-generation MP11—the first full model change since the MP10 launched in January 2019.
While continuous updates have kept the MP10 at the forefront of global competition, the MP11 takes a bold leap forward with all new design. Key changes include a newly developed main chassis, revised suspension and drivetrain systems, and an all-new body—all engineered for elite racing performance.
One of the most significant changes is the revised front/rear weight distribution. With a more front-biased balance compared to the MP10, the MP11 delivers remarkably smooth handling that reduces driver stress. Coupled with optimized suspension geometry, the MP11 also achieves higher cornering speeds.
The range of adjustable settings has been greatly expanded, and maintenance has been significantly improved—critical advantages for adapting to different track sizes and surfaces around the world.
The MP11 also debuts a completely redesigned body and a new rear wing with matching wing stays, offering high-level aerodynamic performance perfectly tuned to the chassis.
Carrying the Inferno legacy into a new era, the MP11 doesn’t just aim to win—it’s built to elevate every aspect of the racing experience, from setup to performance to the pure thrill of commanding one of the finest machines on the grid.
●The Inferno series carries forward its winning legacy at World Championships and major races with a complete model regeneration.
●Features the Inferno’s proven shaft-driven 4WD system.
●All new 3mm 7075 aluminum main chassis is hard anodized (True hard anodizing) design. Engine is now moved forward 1mm and 1mm to the centre.
●Repositioned R/C electronics and battery mounting points shift the center of gravity forward for more responsive and intuitive control.
●New body and rear wing designs optimized for improved aerodynamic performance.
●Reinforced bevel gears inside the differential boost durability.
●Spur gear and clutch bell use 0.8 module gears to enable easy fine-tuning of gear ratios.
●Updated suspension geometry delivers superior surface tracing performance.
●Front and rear oil shocks use a diaphragm design as standard for smooth, stable, reliable shock function.
●Front and rear shock stays are made of high-rigidity 7075 duralumin. Rear shock stay is lightweight design. The front is 5mm thick, and the rear is 4mm thick. Also, the stay mounting screws have been changed from 4mm to 3mm.
●New servo saver design minimizes impact of dirt particles by repositioning the spring.
●Steering crank servo rod mount changed to a bushing type for adjustable steering response.
●Resin front upper deck effectively absorbs shocks from surface for improved chassis stability.
●Holder has been added to the fuel tank for the pressure tube connecting the fuel tank and muffler to prevent snagging during running.
●Unassembled kit includes body and wing.

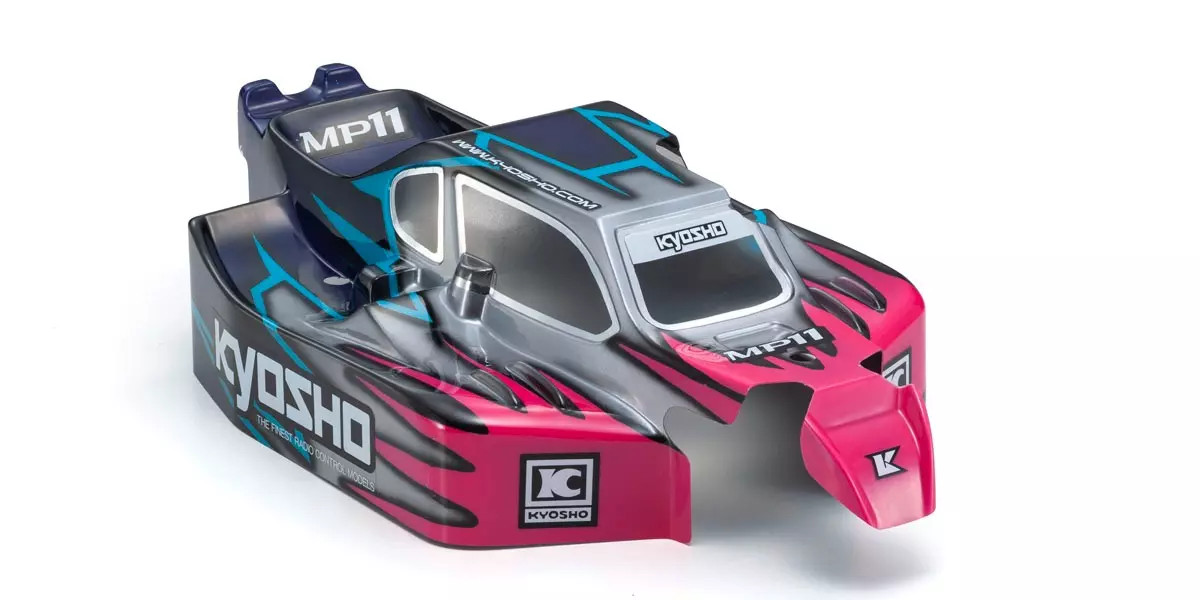

The all-new body is engineered for peak aerodynamic efficiency, with a finely tuned front-to-rear downforce balance that enhances stability, sharpens control, and pushes cornering speed to the limit.

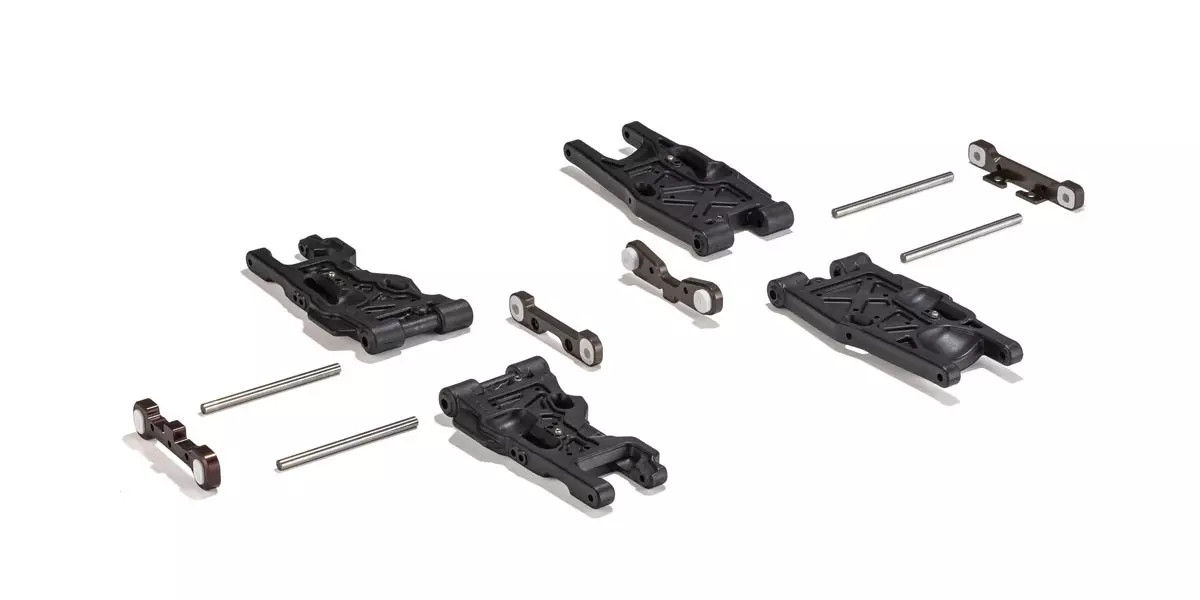

New front and rear lower suspension arms support optional carbon plates for adjustable rigidity, adapting easily to varying surface grip levels. Updated droop screws reduce chassis friction for improved chassis wear. High-rigidity aluminum lower suspension shaft holders are used to withstand the intense loads of off-road driving. The suspension shafts are mounted via precision resin bushings, which can be interchanged to fine-tune toe angle and roll center geometry.

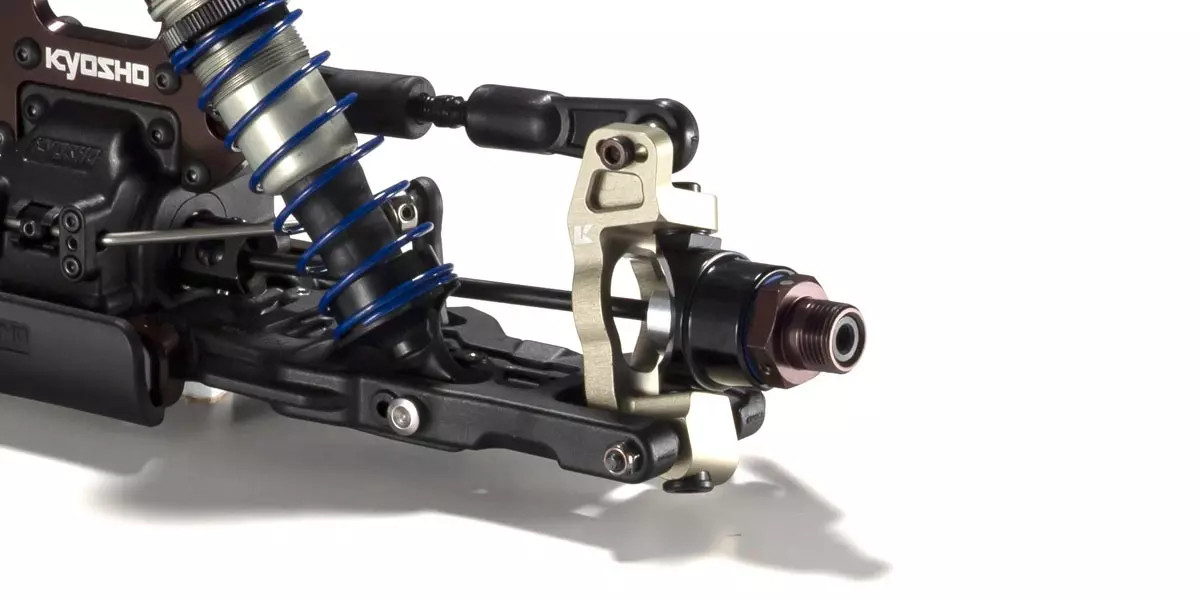

The aluminum front hub carriers feature a 12° kingpin angle which is increased from the previous MP10 TKI3 model and has 18° caster angle. This enhancement improves high-speed stability and boosts overall drivability.

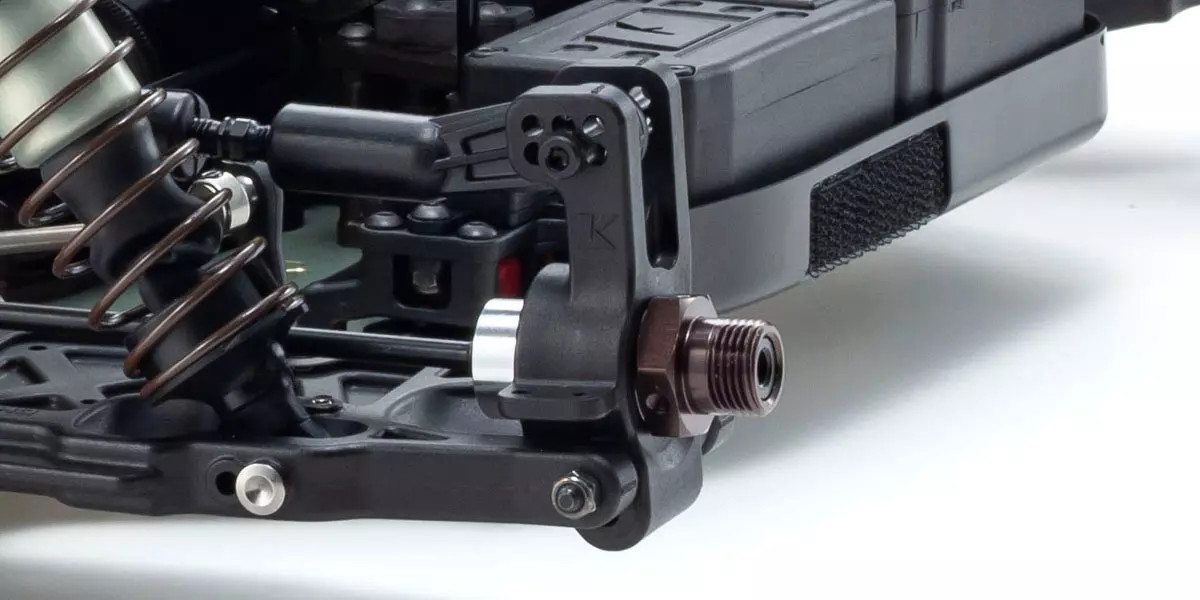

Compared to the MP10, the rear hub mounting position is set further outwards. This reduces the camber change rate, resulting in greater stability on high-grip surfaces and during high-speed driving.

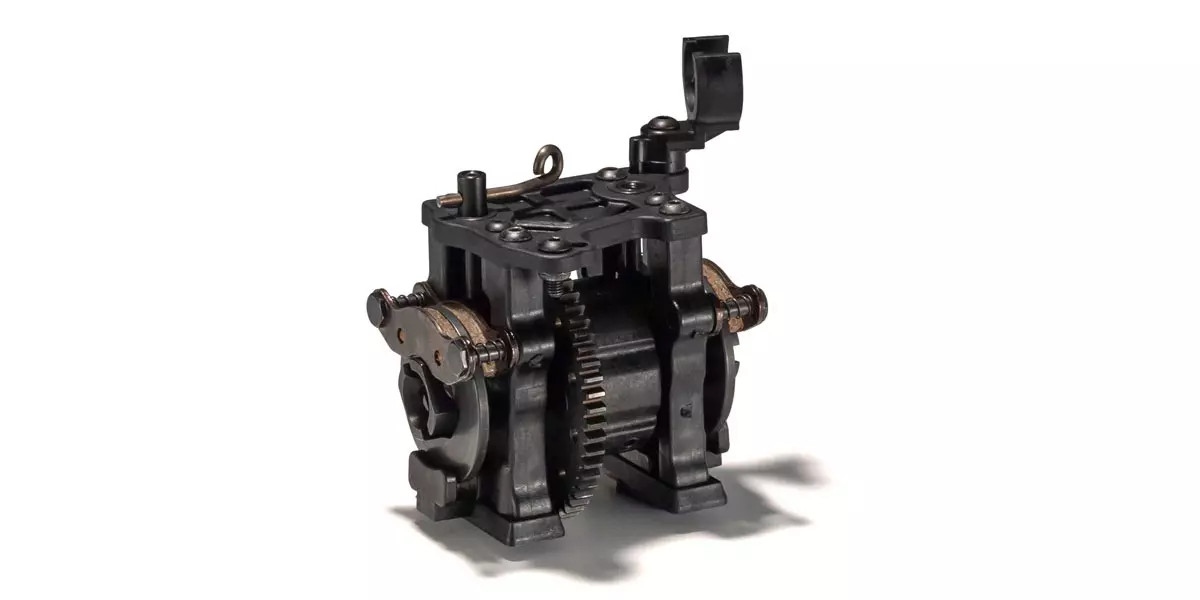

The center differential holder features a new split upper-lower design, simplifying maintenance by enabling differential removal without disturbing the brake cams. Return springs have also been added to the brake pad bolts for improved reliability.

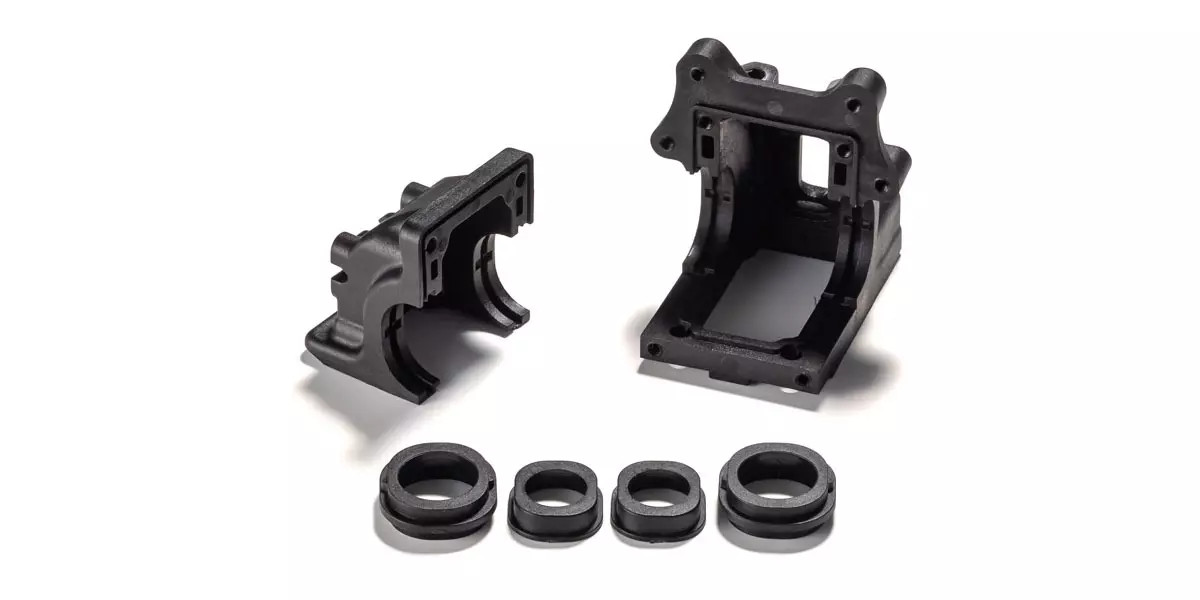

Front and rear bulkheads feature a new design that separates the bearing holders from the bulkheads, enabling adjustable differential mounting height for precise grip tuning. Larger differential pinion bearings are also employed to improve durability under high loads. The front and rear bulkheads feature a split design, allowing for easier access to the differential and improved maintenance. A mechanism has been incorporated to attach the sway centering collar, resulting in an unhindered stabilizing effect.

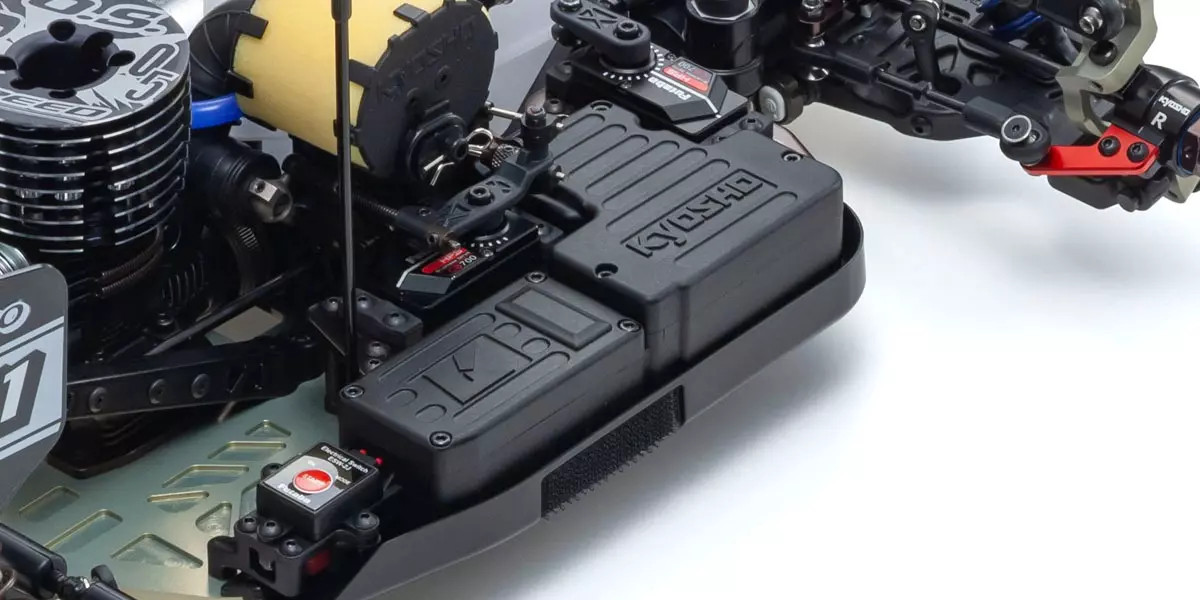

Battery for the R/C system has been repositioned further forward to adjust front-to-rear weight distribution. This forward-biased center of gravity improves handling on rough terrain for more predictable, user-friendly control. Two mounting positions are available for the hump receiver battery pack.

Optimal fuel supply to the carburetor and heat countermeasures through effective heat dissipation fins on the new fuel filter. Additionally, a holder has been added to fuel tank for the pressure tube connecting the fuel tank and muffler to prevent entanglement while driving.

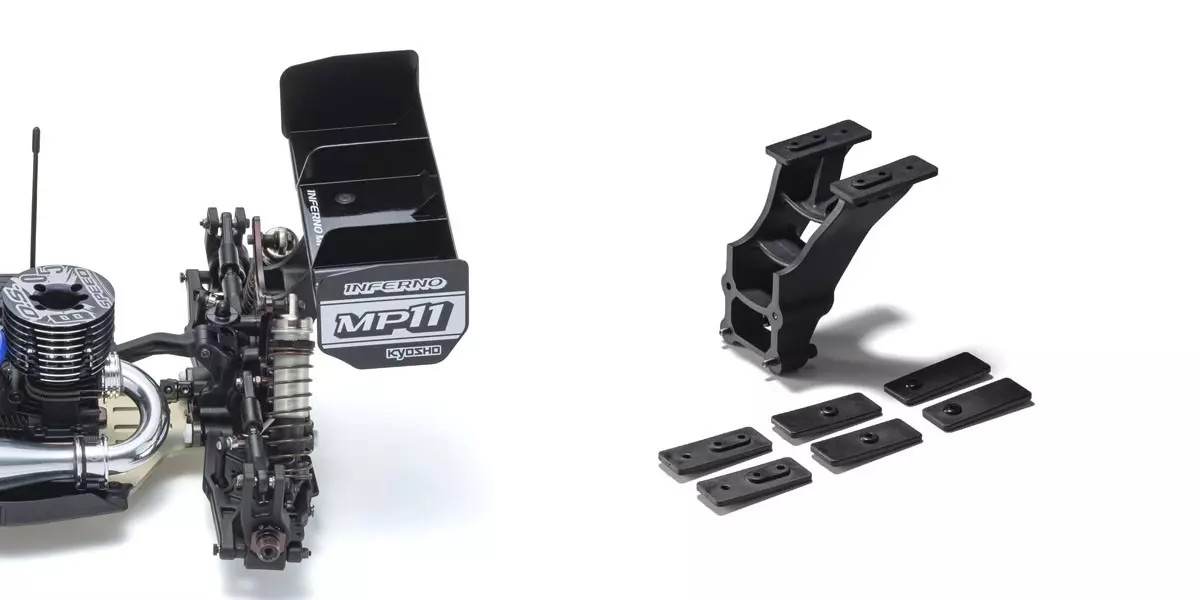

The rear wing stays are lighter than previous versions, and by swapping spacers placed between the wing and the stays, you can adjust the rear wing's position both front-to-back and vertically.The new wing is lightweight and rigid, providing greater downforce. It features 16 pre-marked airflow holes that can be opened to fine-tune downforce for any track or condition.
Technical Data
■Length 490mm
■Width 307mm
■Height 180mm
■Ground clearance 28mm
■Wheelbase 325mm
■Tread(F / R) 254mm
■Tires(F / R) sold separately
■Gear Ratio 12.19:1
■Weight 3390g(approx.)
■Engine .21Class (sold separately)
Kit Content
●Unassembled chassis kit
●Wheels
●Wing
●Special clear body
●Window mask seal
●Logo decals
●Fuel tube
●Linkage parts
●Clutch parts
●Air cleaner
●Ring gear grease
●1.5, 2.0, 2.5mm Hexagonal wrench
●Cross wrench
●Wheel wrench
Requirement to Run
●2-channel 2-servo R/C system for cars
●Compatible batteries for R/C system
●.21 engine
●Tires w/foam inserts for 1/8 buggy
●Starter box
●Plug heater
●Muffler & manifold
●Fuel
●Fuel bottle
●Oil for air cleaner
●Shock oil
●Diff oil
●Paint for car body
●Instant adhesive
●Tools
●Screw lock material
